Guarantee on raw materials: Mincom guarantee all raw materials are stable high quality products from suppliers with advanced technology stock and comprehensive testing procedures.
Excellent soaking ability ensures solid combination with resin, providing perfect physical property and anti-corrosion property
For environments requiring high strength and corrosion resistance
Excellent soaking ability ensures solid combination with resin, providing good physical property
requiring acid-corrosion resistance
High hardness and oxygen index
Application where fire and smoke retardancy required
High hardness; Cost saving
No fire retardancy required
Application where translucent effect or high corrosion-resistance required but no fire retardancy required
1.meniscus (concave) surface
When FRP gratings get dry in the mould, the surface will shrink and form a natural meniscus shape. It’s qualified for ordinary anti-slip application.
Gritted top is made by sticking quartz grit or corundum to FRP grating surface. The grits provide an even better anti-slip effect. It’s usually used for chemical platform, walkway, trench cover, etc.
Smooth surface gratings are not anti-slip. It’s not suitable for pedestrian walk but keeps the features of anti-corrosion, high strength-to-weight ratio, fire retardancy, etc. Smooth surface is usually used for shelf, fencing and architecture.
Micromesh gratings are easy for trolley or wheelchair to go over. Its small opening prevents small tools or other objects from penetrating drops. It’s qualified by testing of 15mm diameter ball drop. The most often use is drain cover, offshore platform, semiconductor and communication area and computer room.

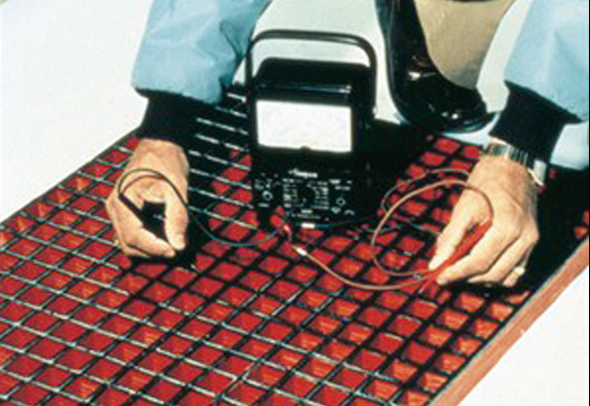

The surface of anti-static grating is made by adding carbon powder, which brings great conductive property and prevent the surface from sparkling generated by static.

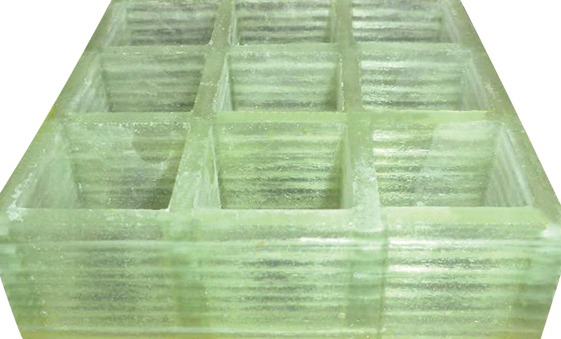

Translucent gratings are made in special recipe, with good transmission and excellent anti-corrosion property. It’s used most often in architecture field and sometimes used as fencing, rack, etc.
The covered grating is produced by sticking an FRP grating to a FRP flat sheet before it getting dry. The surface can be flat, gritted or checkered. The top sheet is usually in 3mm or customerized. Covered grating is usually used on closed areas like water treatment equipment, to prevent corrosive or smelly gas from releasing. Covered grating with gritted surface can be used as rampway, entrance cover or trench cover.
